Solar Dyes and TiO2 Pastes



Solar Dyes and TiO2 Pastes for dye sensitized solar cells
    Solar Dyes and TiO2 Pastes with high quality and low cost for dye sensitized solar cells (DSSCs) have been successfully produced in a large scale in Shanghai Institutes of Ceramics, Chinese Academy of Sciences. All kinds of Ruthenium dyes and Screen printable TiO2paste can be provided. Please contact us if you need them.
1. Solar dyesTG6Z907C106N719N3Z991, etc
TG6
Chemical Name: cis-bis(thiocyanato)(2,2’-bipyridyl-4,4’-dicarboxylato){4,4’-bis[2-(4- hexylsulfanylphenyl)vinyl]-2,2’- bipyridine}ruthenium(II)
Molecular formula: C52H52N6O4RuS4
Molecular weight: 1054
Storage: Dry, cool, dark, tightly closed
HPLC Purity:95%
Appearance: Black crystalline powder
Application: dye for DSSCs

Z907
Chemical Name: cis-bis(thiocyanato) (2,2’-bipyridyl-4,4’-dicarboxylato)4,4’-dinonyl-2,2’- bipyridineruthenium(II)
CAS No: 502693-09-6
Molecular formula: C40H50N6O4RuS2
Molecular weight: 870.1
Storage: Dry, cool, dark, tightly closed
HPLC Purity:95%
Appearance: Black crystalline powder
Application: dye for DSSCs

C106
Chemical Name: cis-bis(thiocyanato)(2,2’-bipyridyl-4,4’-dicarboxylato){4,4’-bis[5- (hexylthio)thiophen-2-yl]-2,2’-bipyridine}ruthenium(II)
CAS No: 1152310-69-4
Molecular formula: C44H44N6O4RuS6
Molecular weight: 1036.28
Storage: Dry, cool, dark, tightly closed
HPLC Purity:95%
Appearance: Black crystalline powder
Application: dye for DSSCs

N719
Chemical Name: cis-di(thiocyanato)-bis(2,2’-bipyridyl-4,4’-dicarboxylate) ruthenium (II) bis(tetrabutylammonium) salt
CAS No: 207347-46-4
Molecular formula: C58H88N8O8RuS2
Molecular weight: 1188.55
Storage: Dry, cool, dark, tightly closed
HPLC Purity:95%
Appearance: Black crystalline powder
Application: dye for DSSCs

N3
Chemical Name: cis-di(thiocyanato)-bis(2,2’-bipyridyl-4,4’-dicarboxylate) ruthenium (II)
CAS No141460-19-7
Molecular formula: C26H16N6O8RuS2
Molecular weight: 705.64
Storage: Dry, cool, dark, tightly closed
HPLC Purity:95%
Appearance: Black crystalline powder
Application: dye for DSSCs

Z991 (CYC-B1)
Chemical Name: cis-di(thiocyanato)bis-(2,2’-bipyridyl-4,4’- dicarboxylate) (4,4’-bis(5-(5- octyl-thiophen-2-yl)thiophen-2-yl)-2,2’-bipiridine) ruthenium(II)
Molecular Formula: C56H56N6O4RuS6
Molecular weight: 1070
Storage: Dry, cool, dark, tightly closed
HPLC Purity:95%
Appearance: Black crystalline powder
Application: dye for DSSCs
  N3
cis-di(thiocyanato)-bis(2,2'-bipyridyl-4,4'-dicarboxylic acid)-ruthenium(I

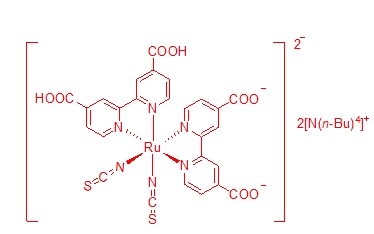

N719
bis(tetrabutylammonium)[cis-di(thiocyanato)-bis(2,2'-bipyridyl-4-carboxylate-4'-carboxylic

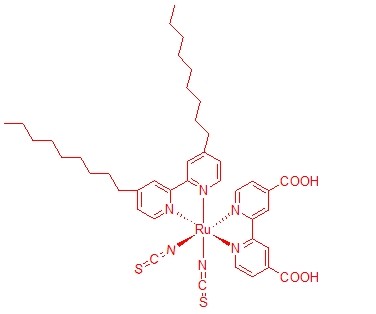

  Z907
cis-di(thiocyanato)-(2,2'-bipyridyl-4,4'-dicarboxylic acid)(4,4'-dinonyl-2,2'-bipyridyl)-ruthenium(II)

C106 (Mass production, HPLC purity95%)

2. Screen printable TiO2 pastes
TiO2 paste for transparent film (SIC-TiO2-T)
Component: TiO2/Terpineol/Organic Binder
Storage: The product should be stored in a tightly closed container under 5~25oC.
Product Details: TiO2 paste for transparent film is a paste containing 17~18 % wt. of nanocrystalline titanium dioxide. The paste exhibits optimal rheological property that is specially designed for preparing photo-electrodes of DSSCs by screen-printing. A ~3 micron thick layer of highly porous anatase film is obtained with a 325 mesh/cm screen after sintering at 500 oC for 30 minutes. The obtained sintered layer is highly transparent.
Specifications:
              CrystallizationAnatase
              Average Nanoparticle Size~20nm
              TiO2 Content17~18%
              Sintered Layer~3μmMeshST325

TiO2 paste for opaque film (SIC-TiO2-D)
Component: TiO2/Terpineol/Organic Binder
Storage: The product should be stored in a tightly closed container under 5~25 oC.
Product Details: TiO2 paste for opaque film is a paste containing 17~18 % wt. of nanocrystalline titanium dioxide mixed with large scattering particles. The paste exhibits optimal rheological property that is specially designed for preparing photo-electrodes of DSSCs by screen-printing. A 3~4 micron thick layer of highly porous film is obtained with a 325 mesh/cm screen after sintering at 500 oC for 30 minutes. The obtained sintered layer is scattering and opaque white.
Specifications:
              CrystallizationAnatase/Rutile
              Average Particle Size~20nm(nanocrystal)/ ~400nm(large scattering particles)
              TiO2 Content17~18%
              Sintered Layer3~4μmMeshST325

TiO2 paste for reflective film (SIC-TiO2-R)
Component: TiO2/Terpineol/Organic Binder
Storage: The product should be stored in a tightly closed container under 5~25 oC.
Product Details: TiO2 paste for reflective film is a paste containing ~20 % wt. of rutile titanium dioxide large particles. The paste exhibits optimal rheological property that is specially designed for preparing photo-electrodes of DSSCs by screen-printing. A ~4 micron thick layer with reflecting function is obtained with a 325 mesh/cm screen after sintering at 500 oC for 30 minutes. The obtained sintered layer is light blocking and opaque white.
Specifications:
              Crystallization Rutile
              Average Particle Size~400nm
              TiO2 Content~20%
              Sintered Layer~4μmMeshST325
